LAB: Microsoft Defender ATP and Conditional Access

The integration between Intune and Microsoft Defender Advanced Threat Protection (MDATP) has been there for a while now. It’s an interesting feature, as it allows the risk score assigned by MDATP to be utilized in CA policies. Most organizations I’ve worked with only use Intune for MDM and MAM and still use SCCM (or the like) for managing workstations. While Intune’s capabilities in workstation management are still limited, it’s constantly evolving – and with SCCM co-management supported, it’s becoming a very viable option to enroll also your workstations into Intune. In any case, I wanted to do a quick experiment on how the MDATP -> Intune -> CA integration works, and how quickly we can go from detecting an alert in MDATP into actually making access restrictions in Azure AD based on the incident.

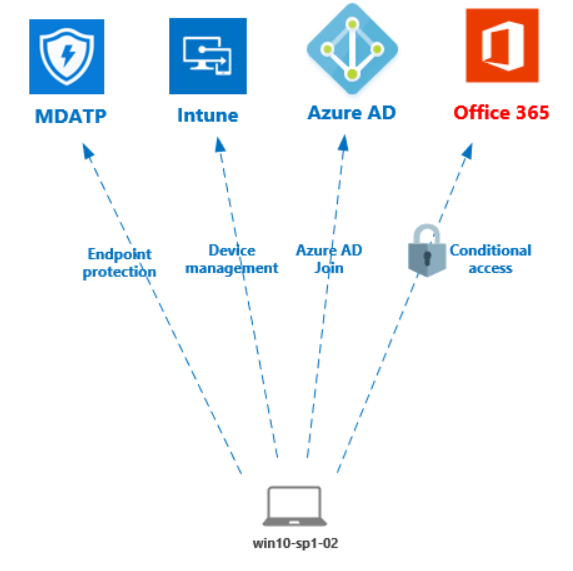

In all its simplicity, the environment is depicted in the picture below. The laptop in this case is just a VM running in Azure but it will do the trick. The Windows 10 is directly joined to Azure AD (this would work equally well with hybrid scenarios, but I got lazy setting up the local infrastructure). The device will be enrolled into Intune and into MDATP (using Intune).

Setup: Intune + MDATP + CA

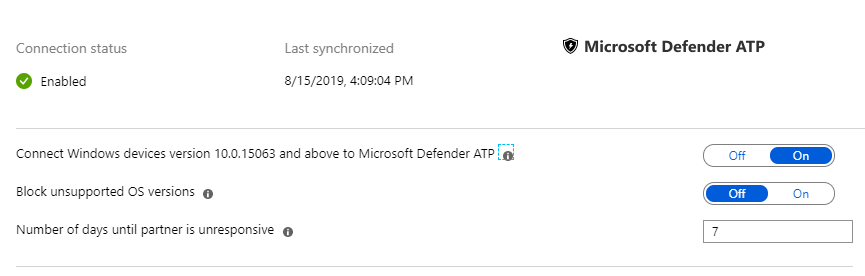

To begin with, you have to integrate Intune with MDATP. You’ll find the setting within the Intune management blade:

As well as in the advanced settings of the MDATP portal:

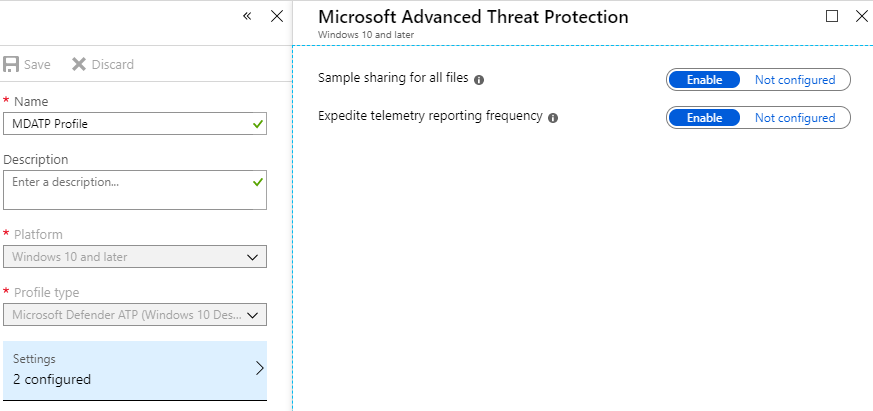

Once the tenant level integration is done, you need to create a device configuration profile for MDATP:

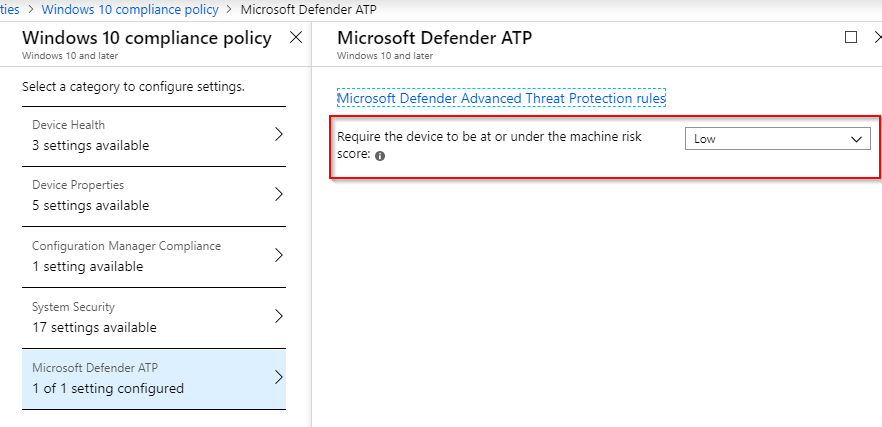

The next thing you need is a device compliance policy. This will determine at which MDATP risk level the device will be marked as non-compliant. In my case, I’ve set it to ”Low”, which means that any risk level higher than that will push the device out of compliance. We’ll see how the risk levels are shown in MDATP later.

On the compliance policy settings we want to make sure that devices with no compliancy status will be marked non-compliant:

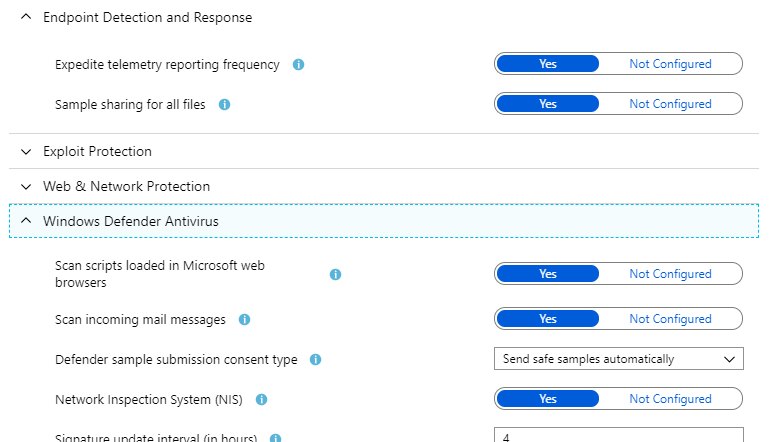

And finally, you should set up a security baseline for MDATP. Although not strictly required for this experiment, it gives you a good idea which MDATP features you can centrally manage via Intune. If you’re running your Windows 10 remotely, be careful with the firewall configurations. The default settings in the baseline will make you lose RDP connectivity (been there…).

Finally, we’ll create a couple of conditional access policies. For testing purposes, I’ll create two policies:

  1. Access to SharePoint Online will require either a compliant device or MFA

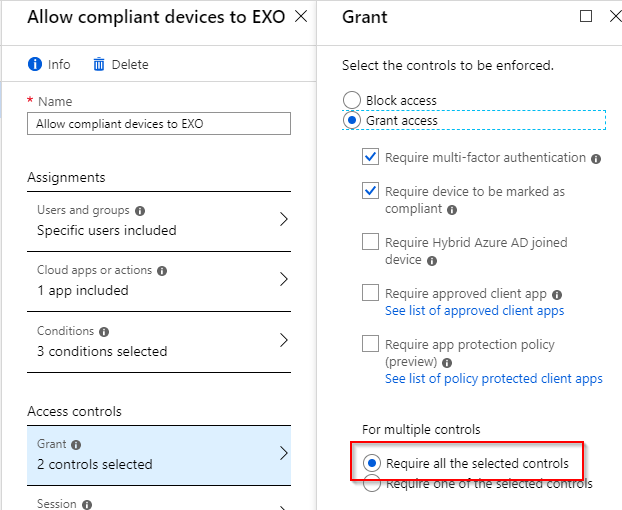

  2. Access to Exchange Online will require both a compliant device and MFA (picture below)

Enroll!

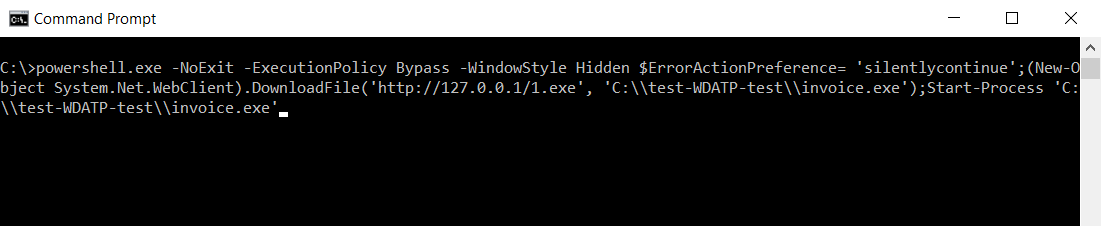

Now we’re good to go! I start by joining the Windows 10 client to Azure AD, which will also automatically enroll it into Intune (as I have enabled the enrollment policy). After that, I’ll login with an Azure AD account and run the following command. This should generate an informational alert in MDATP, just to show that we’re getting the data.

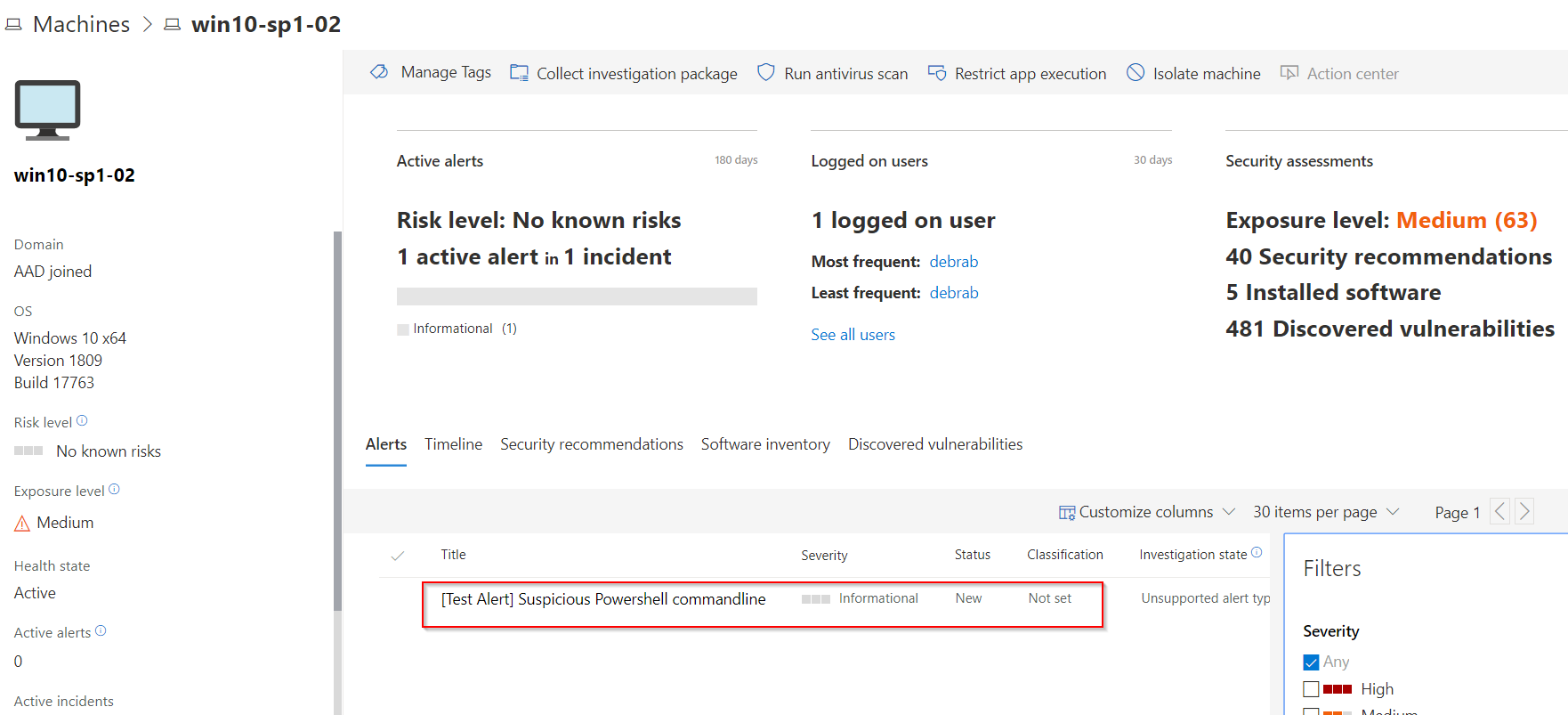

The information in the MDATP portal lags a few minutes behind, you have to wait for a bit for the information to appear. But eventually, you should see this:

As you can see, the risk level is currently ”No known risks”, as this activity is not considered suspicious. Note, this view also shows the machines exposure level. MDATP assesses any vulnerabilities on the host, either due to missing security patches or known vulnerable configurations. The exposure level does not impact the devices compliance status, but provides very useful information about the security posture of the device.

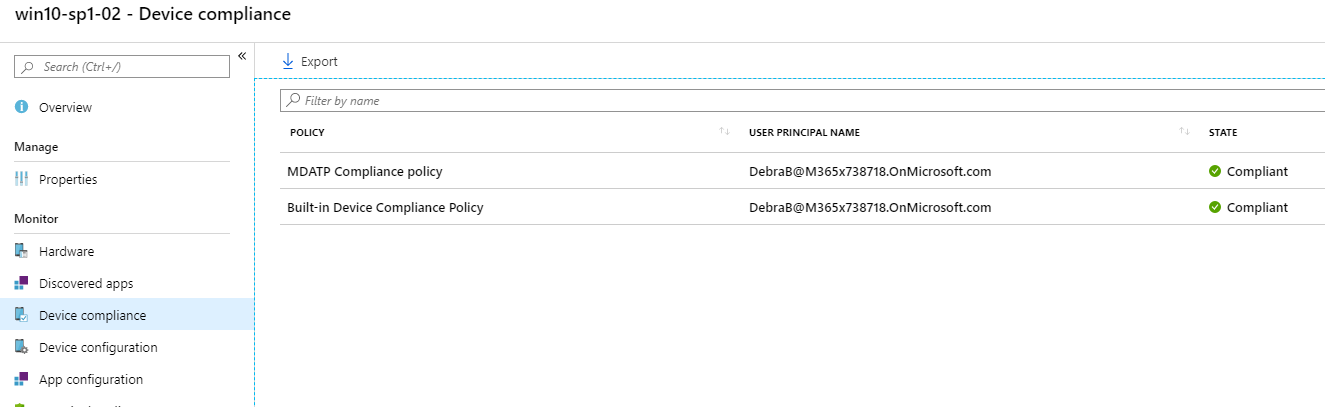

At this point, we can see our device also in Intune, and it is compliant with all the defined policies:

When I access SharePoint Online, I’m able to get in with just username and password. And if I login to Exchange Online, I need to authenticate using MFA, but I’m able to get in. So everything is working as expected. Note: if you’re using Chrome, you need to have the Windows 10 Accounts extension enabled. Otherwise the device information will not get conveyed to Azure AD, and it will assume that you’re using a non-compliant device.

Infect me!

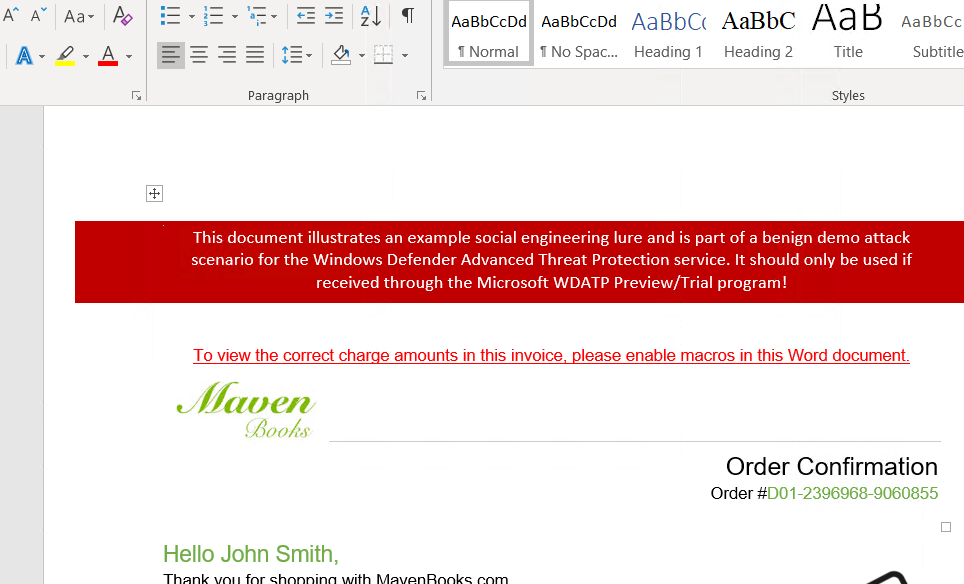

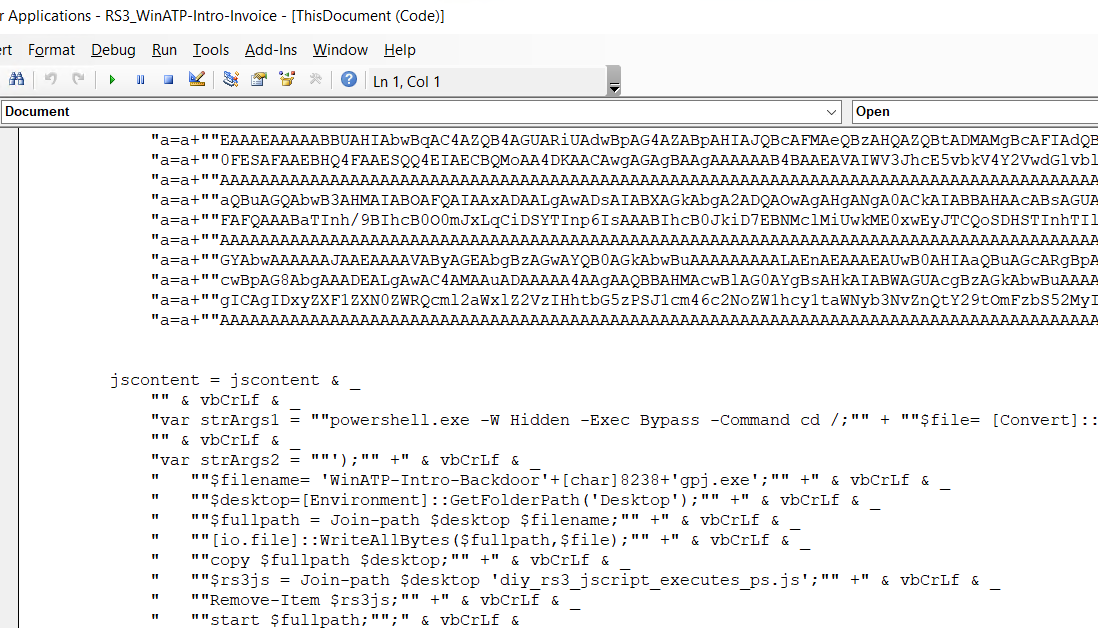

Now, let’s break things. In order to do that, I need to simulate an attack on my Windows 10 device so that MDATP will increase the risk level. For that purpose I’m using a Word document that is crafted for this purpose.

The document contains a macro that drops two files on the desktop (diy_rs3_jscript_executes_ps.js and WinATP-Intro-Backdoorexe.jpg). It will then establish persistence by modifying the HKCU\Software\Microsoft\Windows\CurrentVersion\Run registry key. And finally, it starts a trusted process (RuntimeBroker.exe) and injects malicious code into it. This kind of pattern might go unnoticed from traditional anti-malware solutions, and that’s of course the point here.

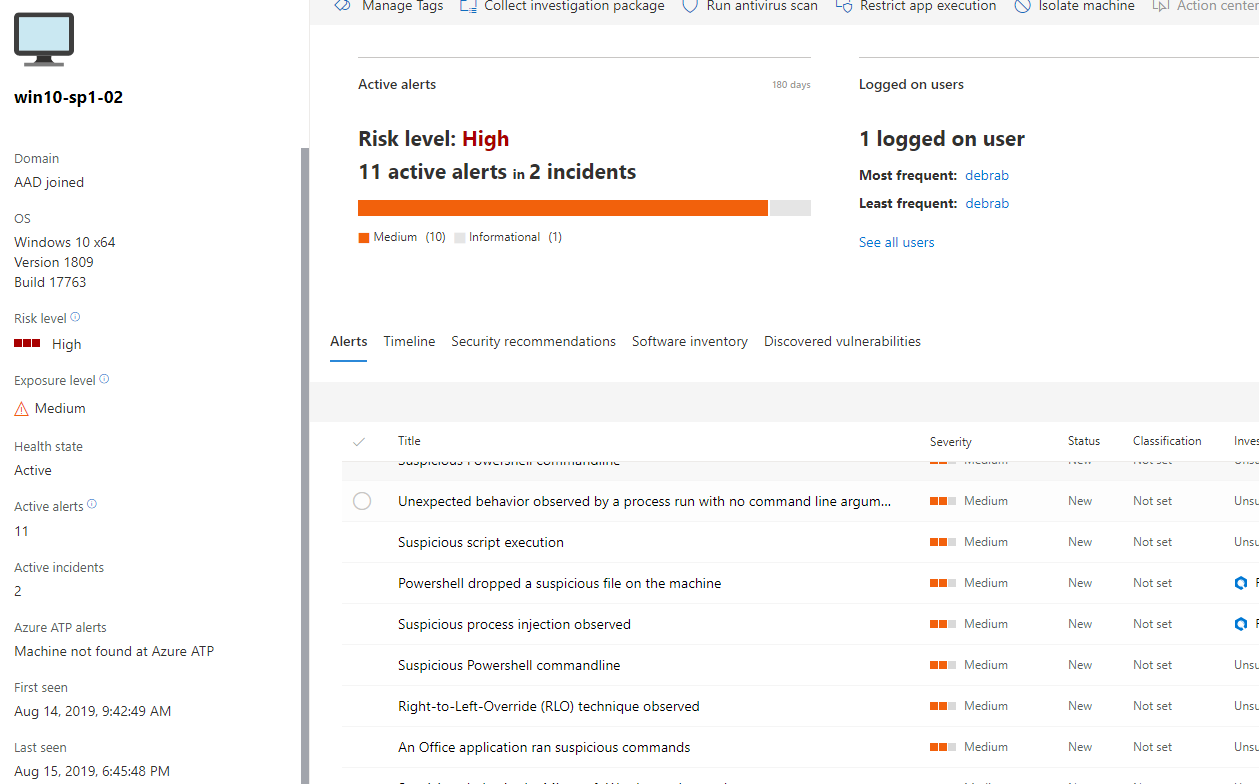

Once I’ve opened the document, I’ll wait a couple of minutes and voilà! There’s not just one alert, but a bunch of them, and the device risk level jumped to High. We’ll briefly look into the forensics later, now we just want to see what happens with conditional access.

The information has also propagated to Intune via the integration and the device is no longer compliant (this took literally just a couple of minutes from the simulated infection):

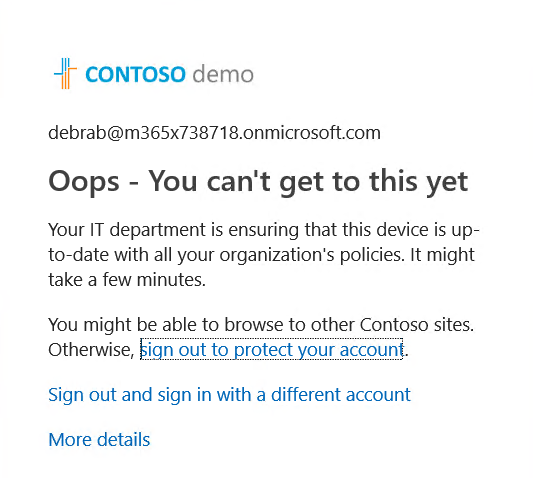

At this point, I’m still able to use my open browser session as the access token is still valid (1 hour validity time). But I’m impatient so I just close my browser and reopen it. When I login to Exchange Online now, I get the following notice. In this case, it should say: ”Oops – you really shouldn’t have opened that document”.

I’m still able to access SharePoint Online but it now requires MFA. So the CA policies work just as expected.

Off the grid

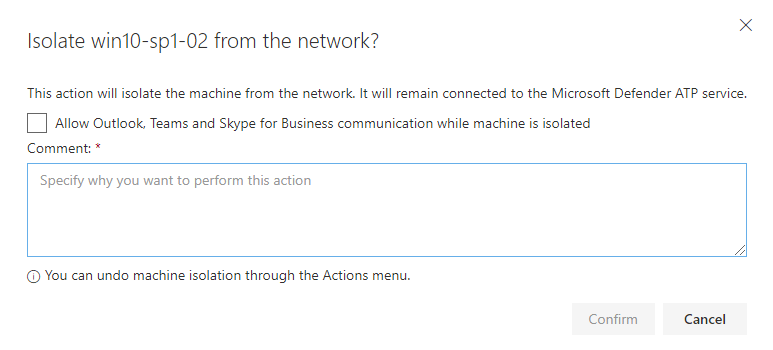

One useful feature within MDATP is that you can completely isolate the client from the network. It might be that the device is currently in the corporate network, and therefore just restricting access through Azure AD might not be enough (unless you’ve implemented a full-blown zero-trust model).

Once I do that, it takes a minute or two and I lose my RDP connection. Luckily, that the device will still be able to communicate back to MDATP (well, it would be a pretty crappy feature otherwise). This way, once the remediation activities have been completed and, you can remotely allow the device back into the network. Also, I can still continue my forensic analysis while the device is safely off the grid.

CSI

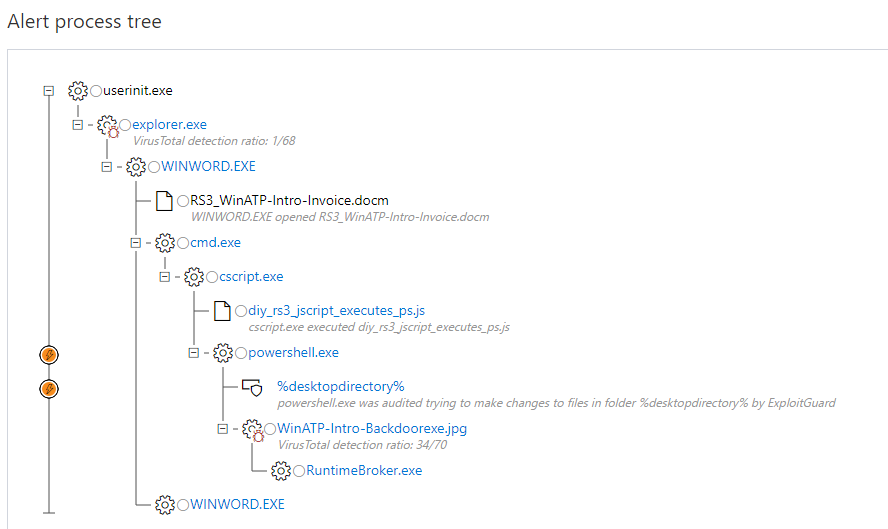

So what would happen next? Obviously, at this point someone from the SOC team, or whoever is monitoring the alerts, would need to investigate what happend, and help getting the device back into compliance. There are a couple of MDATP features worth exploring at this point (we won’t go through everything). MDATP shows you the process tree during the incident, which gives a nice overview of what happened:

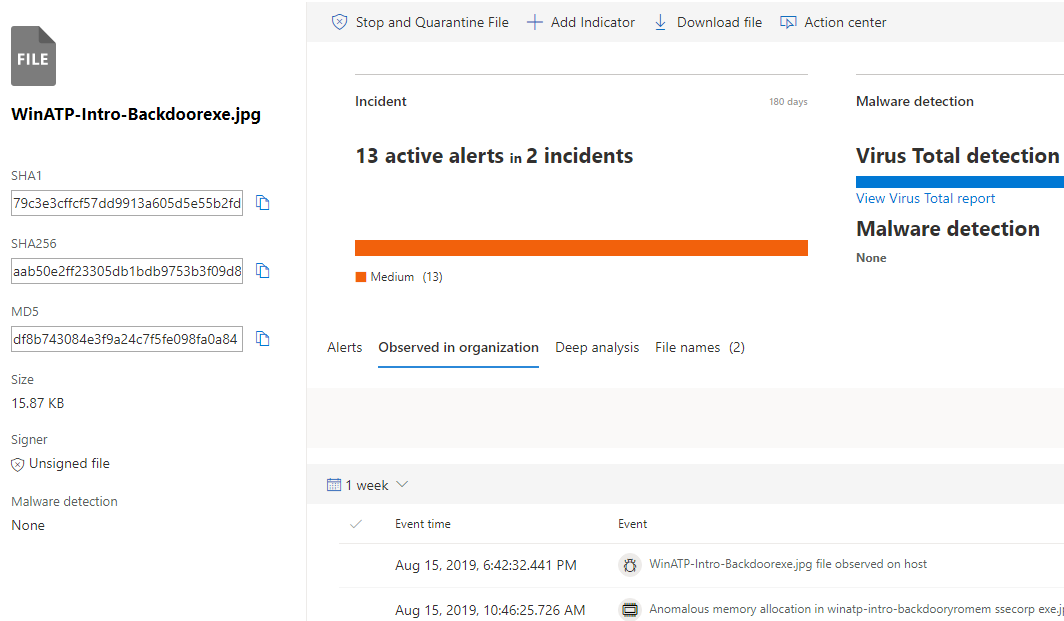

 You can also check on individual files, and where they have been seen in the organization, in this case I’m looking at the WinATP-Intro-Backdoorexe.jpg:

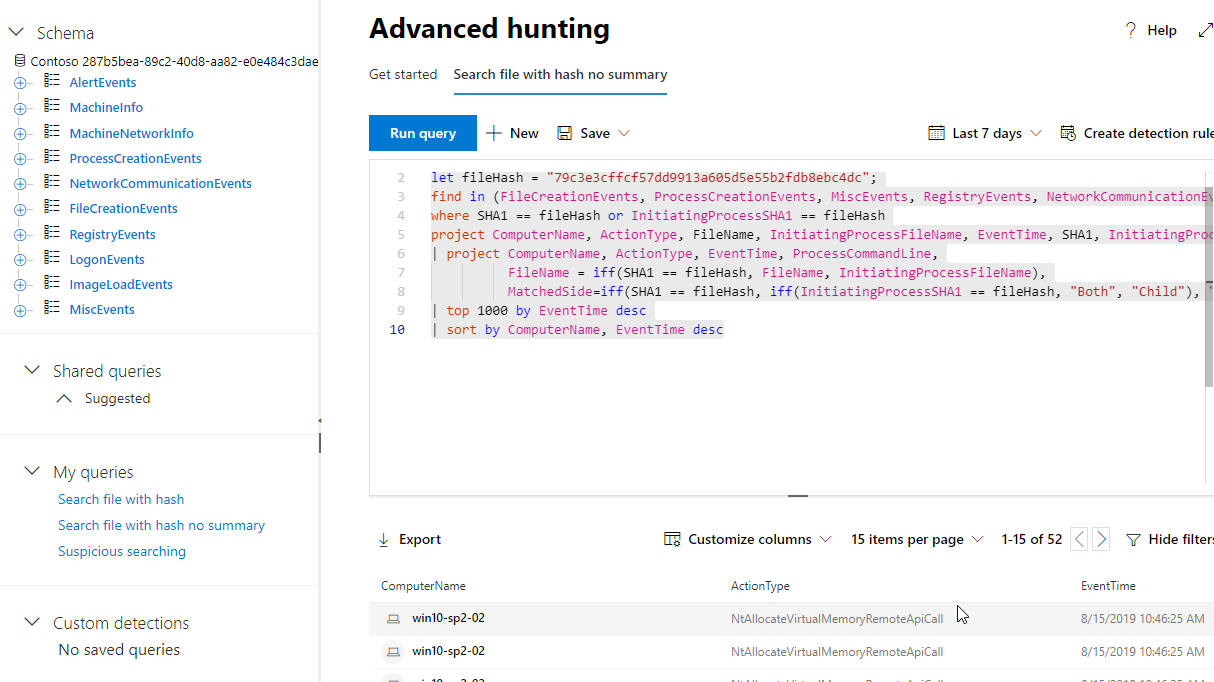

You can also take the file hash and use it to drill down to the data using the advanced hunting functionality. This allows you to search the data directly from the MDATP logs using Kusto query language (same that is used with Log Analytics). There’s also a community that has produced useful examples, both for generic use as well as for identifying specific exploits (https://github.com/microsoft/WindowsDefenderATP-Hunting-Queries). In this case, I’m just looking into all the events involving this particular file.

Another useful feature is the ”Collect investigation package”:

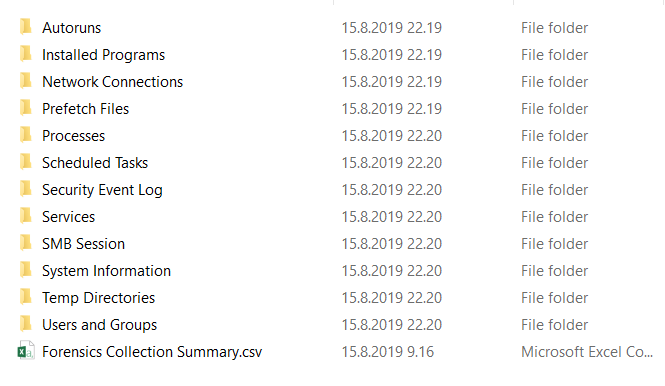

This will pull all sorts of useful information from the machine and allow you to download it in zip format. This can be very useful when doing the forensic analysis.

Reincarnation

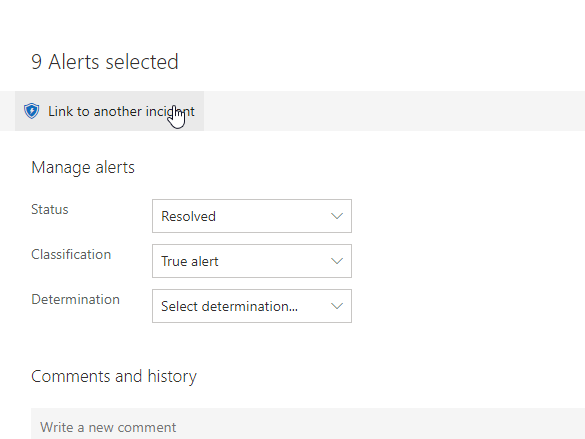

So let’s say we’ve now concluded our investigations and cleaned up the machine. What next? We have to decrease the risk level of the machine for it to become compliant again. To do that, we have to resolve the alerts in the portal. You can also link alerts into incidents, as in this case all the alerts originating from this machine should all be related to a single incident.

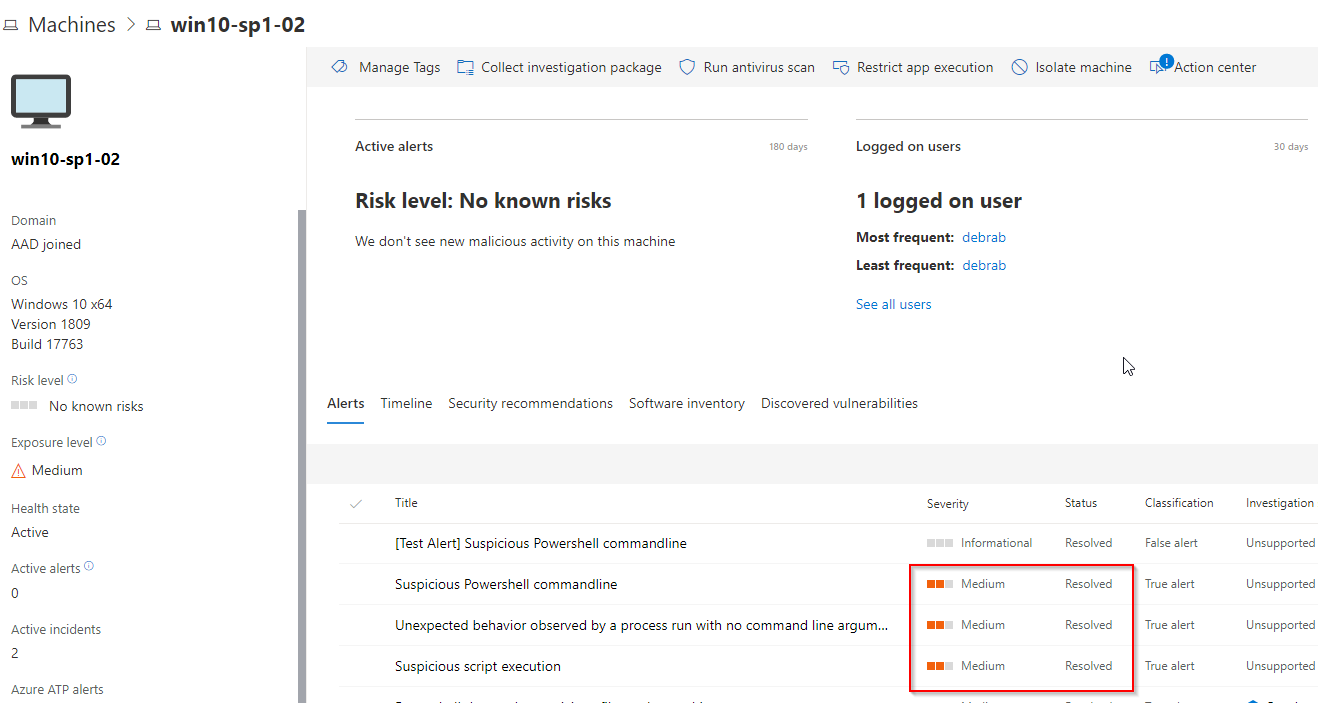

Once all the alerts have been resolved, the risk level goes back to ”No known risks”. At this point, if we have isolated the machine, we could release it from the isolation (it took a couple of minutes for me to be able to reconnect my RDP session after the release).

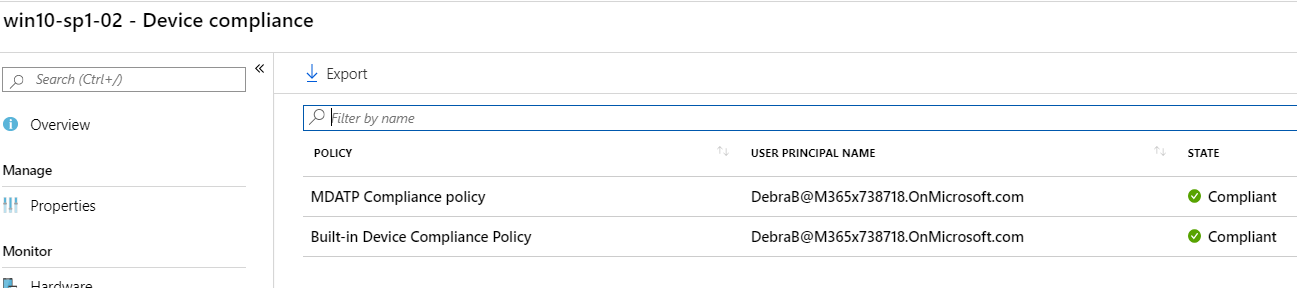

And as expected, device status in Intune is back to compliant:

And I’m able to read my email again!

That concludes today’s experiments.
