Authorize Logic Apps in Azure Functions with Logic App managed identity and Azure AD

I am not certain for how long there has been possibility of configuring logic apps to use managed identity for calling functions, so I created this short post to document the steps.

Background

There is excellent article at @docs outlining the managed identity option for calling upstream services from Logic Apps

https://docs.microsoft.com/en-us/azure/logic-apps/logic-apps-securing-a-logic-app?tabs=azure-portal#managed-identity-authentication

Guide

The steps are very simple

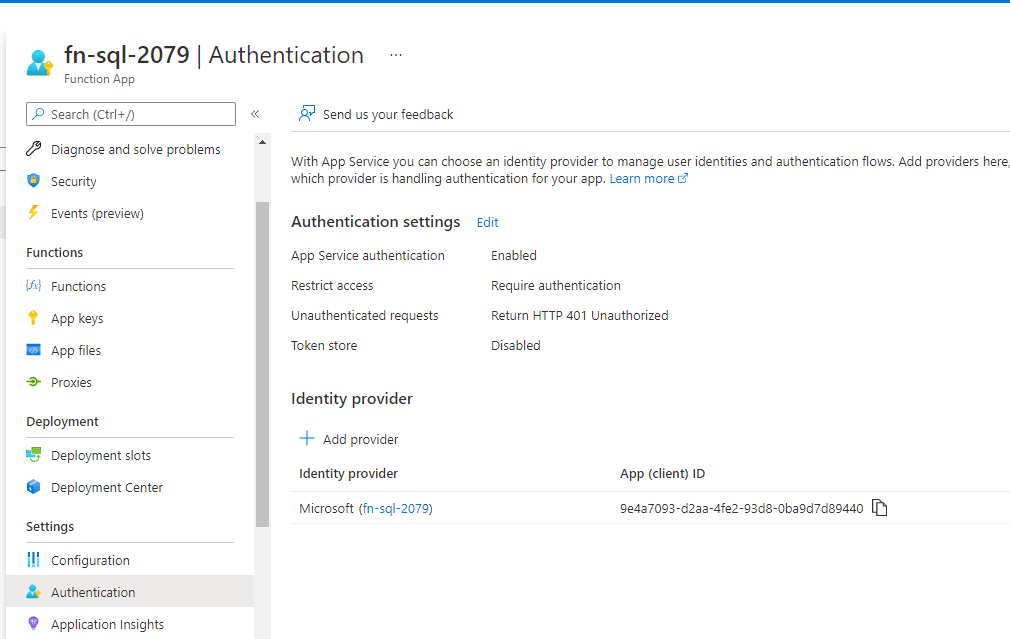

  • Enable your function for authentication

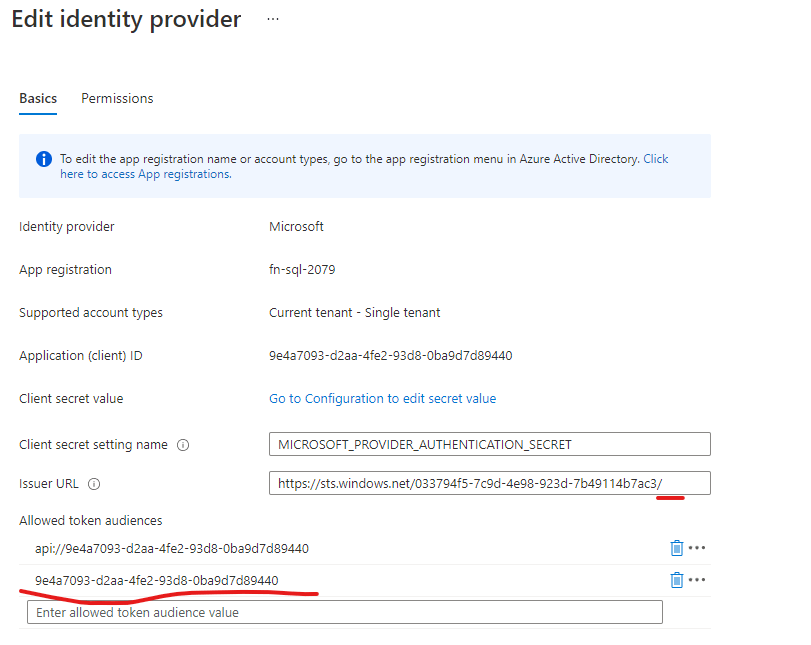

    • Ensure you allow audience of the appid, and v1 endpoint to be the issuer (remove v2.0 from issuer, unless you are forcing logic app to use v2 endpoint with HTTP request version)
  • If you have existing function change (after enabling authentication) ”authLevel” to anonymous (note. this only removes the function level ?code="" authentication, function is now authenticated by Azure AD, as are the rest of the functions)
{
  "bindings": [
    {
      "authLevel": "anonymous",
      "type": "httpTrigger",
      "direction": "in",
      "name": "req",
      "methods": [
        "get",
        "post"
      ]
    },
    {
      "type": "http",
      "direction": "out",
      "name": "res"
    }
  ]
}

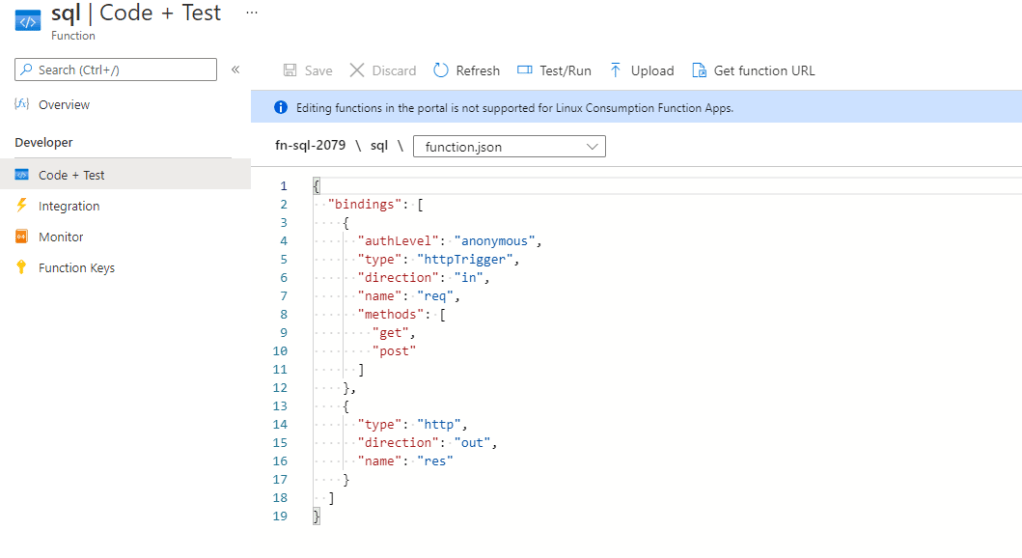

  • You can try the ”upload” dialog for function.json, if you don’t have automated deployment configured for the function

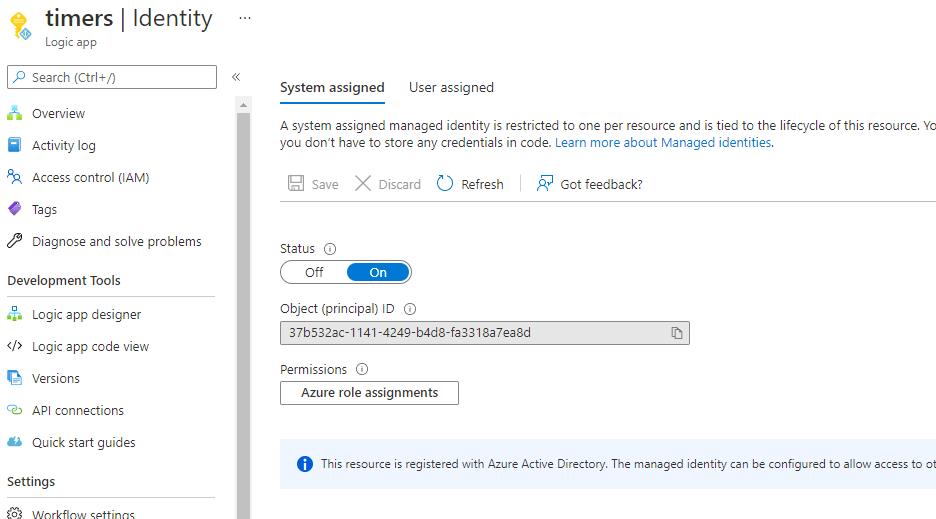

  • Enable managed identity in your logic app
  • Create the function step in Logic App
Select ’Authentication’
Select ’Managed Identity’ and use appId of the function App Registration as audience
    "sql": {
                "inputs": {
                    "authentication": {
                        "audience": "9e4a7093-d2aa-4fe2-93d8-0ba9d7d89440",
                        "type": "ManagedServiceIdentity"
                    },
                    "function": {
                        "id": "/subscriptions/6193053b-408b-44d0-b20f-4e29b9b67394/resourceGroups/RG-FN-2079/providers/Microsoft.Web/sites/fn-sql-2079/functions/sql"
                    },
                    "queries": "@triggerOutputs()['queries']"
                },
                "runAfter": {},
                "type": "Function"
            }
  • Now call your Logic App to test that the authorization works

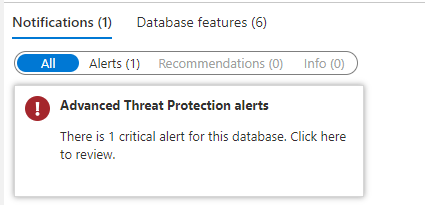

Yes…. I am intentionally doing SQLInjection from Logic App

Troubleshooting

Both of these errors can arise, if you have not configured settings as configured in the outlined step

BadRequest. Http request failed as there is an error getting AD OAuth token: 'AADSTS500011: The resource principal named api://9e4a7093-d2aa-4fe2-93d8-0ba9d7d89440/.default was not found in the tenant named flex

{
  "code": 401,
  "message": "IDX10205: Issuer validation failed. Issuer: '[PII is hidden. For more details, see https://aka.ms/IdentityModel/PII.]'. Did not match: validationParameters.ValidIssuer: '[PII is hidden. For more details, see https://aka.ms/IdentityModel/PII.]' or validationParameters.ValidIssuers: '[PII is hidden. For more details, see https://aka.ms/IdentityModel/PII.]'."
}

Hardening app registrations, especially for managed identities (Client Credentials) https://github.com/jsa2/aadClientCredentialsDoc#checklist
